Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
892-094-542-203 EDAC Inc. 892-094-542-203 114.3448
RFQ
 ECAD 5981 0.00000000 EDAC Inc. 892 Bulk Active -40°C ~ 125°C Through Hole - 892-094 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-892-094-542-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 94 Female Non Specified - Dual Edge 47 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 2
387-054-558-802 EDAC Inc. 387-054-558-802 17.4708
RFQ
 ECAD 7487 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole, Right Angle - 387-054 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-387-054-558-802 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 54 Female Non Specified - Dual Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2

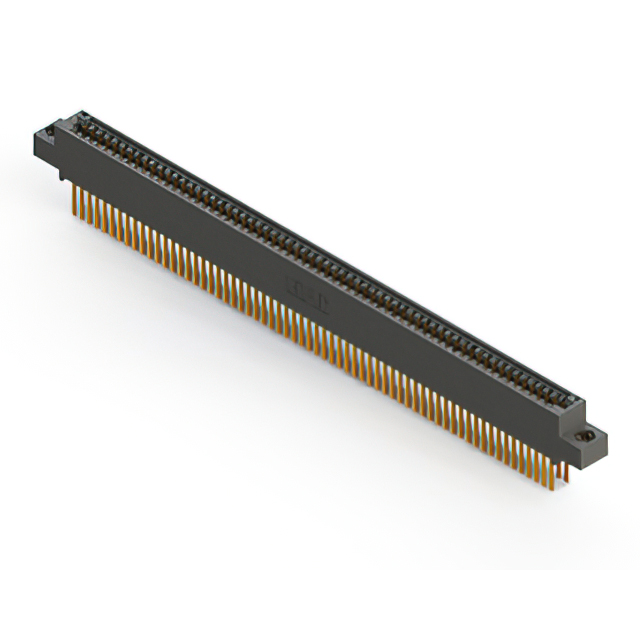

895-128-544-507 EDAC Inc. 895-128-544-507 139.5136
RFQ
 ECAD 1146 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-128 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-128-544-507 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 128 Female Non Specified - Dual Edge 64 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 2
355-060-520-502 EDAC Inc. 355-060-520-502 13.2564
RFQ
 ECAD 6008 0.00000000 EDAC Inc. 355 Box Active -40°C ~ 105°C Panel Mount, Through Hole - 355-060 Black Solder download ROHS3 Compliant REACH Unaffected 151-355-060-520-502 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 60 Female Non Specified - Dual Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
892-021-524-104 EDAC Inc. 892-021-524-104 79.9920
RFQ
 ECAD 4422 0.00000000 EDAC Inc. 892 Bulk Active -40°C ~ 125°C Through Hole - 892-021 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-892-021-524-104 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 21 Female Non Specified - Single Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyphenylene Sulfide (PPS) 1
845-061-521-603 EDAC Inc. 845-061-521-603 150.0188
RFQ
 ECAD 2720 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-061 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-061-521-603 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 61 Female Non Specified - Single Edge 61 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 1

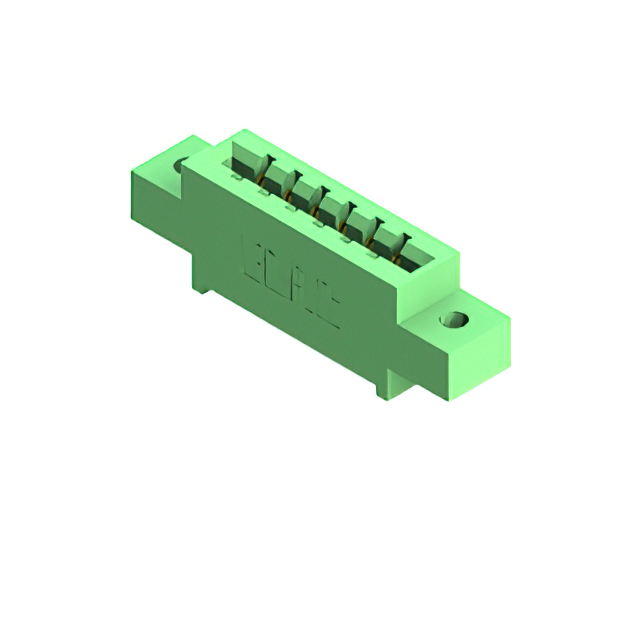

337-006-542-602 EDAC Inc. 337-006-542-602 4.2668
RFQ
 ECAD 5412 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Through Hole - 337-006 Green Wire Wrap download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-006-542-602 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 6 Female Non Specified - Single Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1

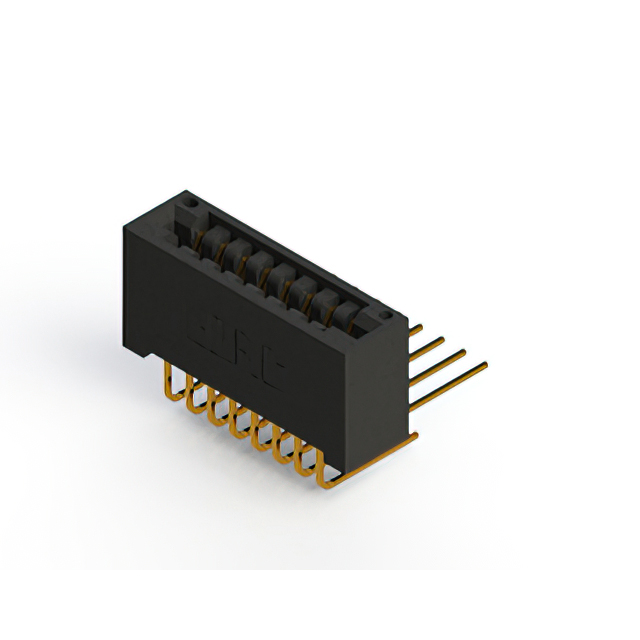

896-016-559-201 EDAC Inc. 896-016-559-201 53.0460
RFQ
 ECAD 7998 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 896-016 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-016-559-201 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Dual Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyphenylene Sulfide (PPS) 2
892-028-560-201 EDAC Inc. 892-028-560-201 63.2968
RFQ
 ECAD 5958 0.00000000 EDAC Inc. 892 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 892-028 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-892-028-560-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 28 Female Non Specified - Dual Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyphenylene Sulfide (PPS) 2

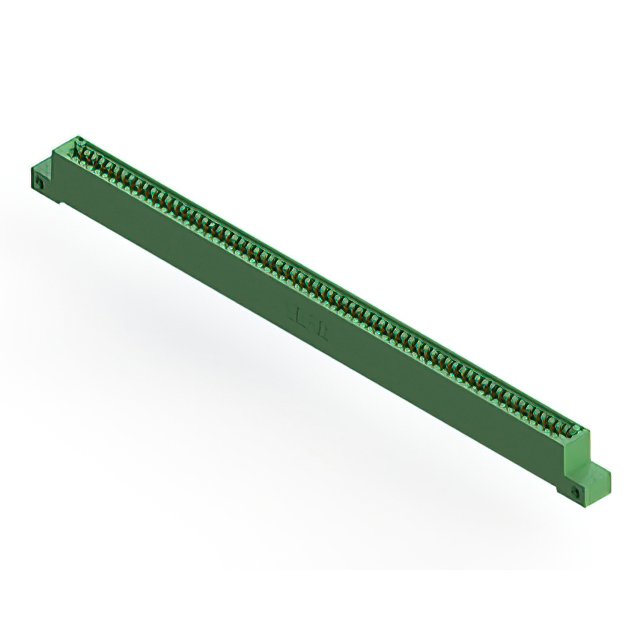

845-067-521-112 EDAC Inc. 845-067-521-112 149.7472
RFQ
 ECAD 4500 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-067 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-067-521-112 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 67 Female Non Specified - Single Edge 67 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
346-007-559-607 EDAC Inc. 346-007-559-607 11.8320
RFQ
 ECAD 5575 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole, Right Angle - 346-007 Green Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-346-007-559-607 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 7 Female Non Specified - Single Edge 7 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 1
305-022-500-501 EDAC Inc. 305-022-500-501 7.3916
RFQ
 ECAD 6741 0.00000000 EDAC Inc. 305 Bulk Active -40°C ~ 105°C Free Hanging (In-Line) - 305-022 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-305-022-500-501 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 22 Female Non Specified - Dual Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2

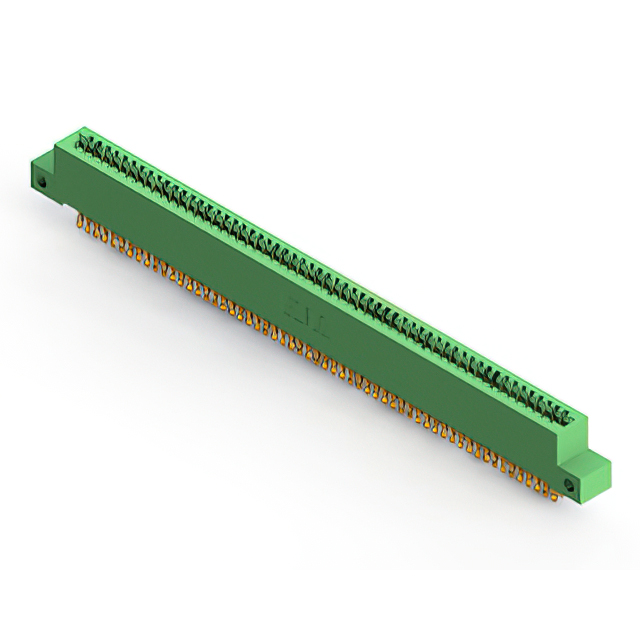

842-114-555-212 EDAC Inc. 842-114-555-212 138.0960
RFQ
 ECAD 5540 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 842-114 Green Solder download ROHS3 Compliant REACH Unaffected 151-842-114-555-212 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 114 Female Non Specified - Dual Edge 57 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2

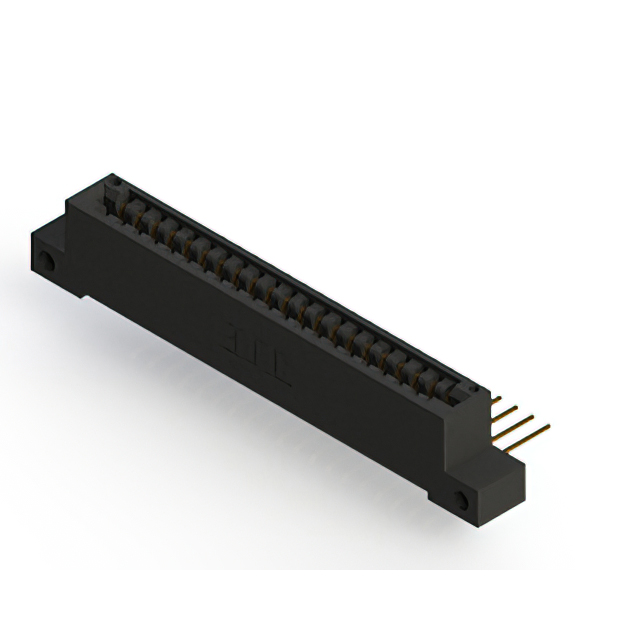

896-021-558-112 EDAC Inc. 896-021-558-112 65.8036
RFQ
 ECAD 7250 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 896-021 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-021-558-112 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 21 Female Non Specified - Single Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 1
887-038-540-207 EDAC Inc. 887-038-540-207 75.4472
RFQ
 ECAD 6505 0.00000000 EDAC Inc. 887 Bulk Active -40°C ~ 125°C Through Hole - 887-038 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-887-038-540-207 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 38 Female Non Specified - Dual Edge 19 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 2
346-056-555-207 EDAC Inc. 346-056-555-207 13.8508
RFQ
 ECAD 9473 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 346-056 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-346-056-555-207 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2

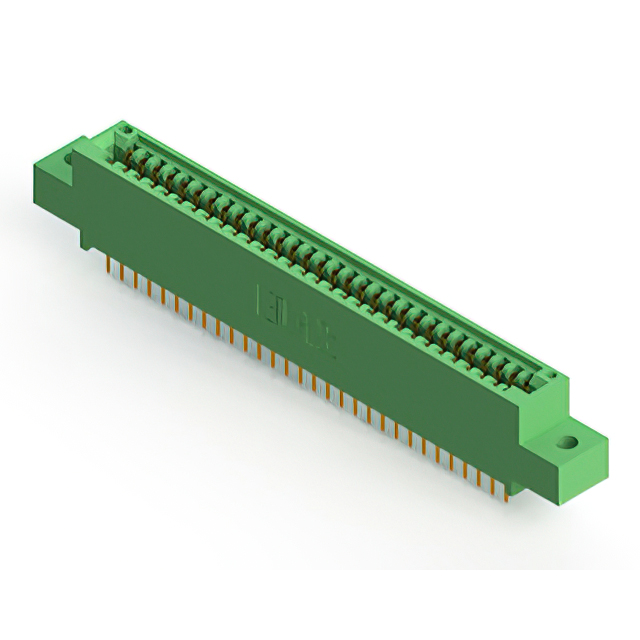

845-060-525-502 EDAC Inc. 845-060-525-502 61.4248
RFQ
 ECAD 6416 0.00000000 EDAC Inc. 845 Bulk Active -40°C ~ 125°C Through Hole - 845-060 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-845-060-525-502 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 60 Female Non Specified - Dual Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
345-030-559-178 EDAC Inc. 345-030-559-178 15.2688
RFQ
 ECAD 7898 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole, Right Angle Card Guides 345-030 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-030-559-178 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 30 Female Non Specified - Single Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1

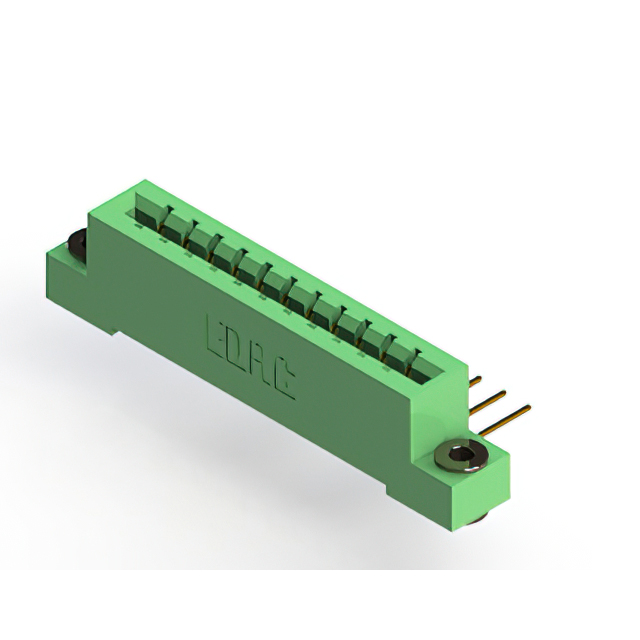

833-011-559-103 EDAC Inc. 833-011-559-103 57.5348
RFQ
 ECAD 2244 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole, Right Angle - 833-011 Green Solder download ROHS3 Compliant REACH Unaffected 151-833-011-559-103 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 11 Female Non Specified - Single Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Diallyl Phthalate (DAP) 1
345-026-523-858 EDAC Inc. 345-026-523-858 11.4384
RFQ
 ECAD 2777 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole Card Guides 345-026 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-026-523-858 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 26 Female Non Specified - Dual Edge 13 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
842-037-540-108 EDAC Inc. 842-037-540-108 133.8436
RFQ
 ECAD 5710 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole - 842-037 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-842-037-540-108 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 37 Female Non Specified - Single Edge 37 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 1
837-016-541-201 EDAC Inc. 837-016-541-201 49.0296
RFQ
 ECAD 6308 0.00000000 EDAC Inc. 837 Box Active -40°C ~ 125°C Through Hole - 837-016 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-837-016-541-201 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 16 Female Non Specified - Dual Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Diallyl Phthalate (DAP) 2
895-104-523-203 EDAC Inc. 895-104-523-203 103.0048
RFQ
 ECAD 7166 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-104 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-104-523-203 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 104 Female Non Specified - Dual Edge 52 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 2
857-052-560-212 EDAC Inc. 857-052-560-212 114.6552
RFQ
 ECAD 9599 0.00000000 EDAC Inc. 857 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 857-052 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-857-052-560-212 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 52 Female Non Specified - Dual Edge 26 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 2
438-041-500-122 EDAC Inc. 438-041-500-122 33.0792
RFQ
 ECAD 4011 0.00000000 EDAC Inc. 438 Tray Active -65°C ~ 125°C Panel Mount, Through Hole - 438-041 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-438-041-500-122 EAR99 8536.69.4040 25 0.200" (5.08mm) 2 Gold 10.0µin (0.25µm) Copper Alloy - 41 Female Non Specified - Dual Edge - 0.093" (2.36mm) - Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
392-008-540-102 EDAC Inc. 392-008-540-102 9.9184
RFQ
 ECAD 8213 0.00000000 EDAC Inc. 392 Box Active -40°C ~ 105°C Through Hole - 392-008 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-392-008-540-102 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 8 Female Non Specified - Single Edge 8 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
345-070-542-412 EDAC Inc. 345-070-542-412 26.1864
RFQ
 ECAD 9167 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-070 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-070-542-412 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 70 Female Non Specified - Single Edge 70 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
887-030-541-602 EDAC Inc. 887-030-541-602 48.1952
RFQ
 ECAD 4376 0.00000000 EDAC Inc. 887 Bulk Active -40°C ~ 125°C Through Hole - 887-030 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-887-030-541-602 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 30 Female Non Specified - Single Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 1
307-006-401-168 EDAC Inc. 307-006-401-168 14.4608
RFQ
 ECAD 9285 0.00000000 EDAC Inc. 307 Bulk Active -40°C ~ 105°C Through Hole Card Guides 307-006 Green Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-307-006-401-168 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 12 Female Non Specified - Dual Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
746-023-527-506 EDAC Inc. 746-023-527-506 7.5432
RFQ
 ECAD 8432 0.00000000 EDAC Inc. 746 Bulk Active -40°C ~ 105°C Through Hole - 746-023 Black Press-Fit download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-746-023-527-506 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 30.0µin (0.76µm) Copper Alloy Cantilever 23 Female Non Specified - Single Edge 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1
