Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
846-014-541-658 EDAC Inc. 846-014-541-658 -
RFQ
 ECAD 4458 0.00000000 EDAC Inc. 846 Box Obsolete 846-014 download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-846-014-541-658 EAR99 8536.69.4040 25
892-028-555-208 EDAC Inc. 892-028-555-208 81.5064
RFQ
 ECAD 9422 0.00000000 EDAC Inc. 892 Bulk Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 892-028 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-892-028-555-208 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 28 Female Non Specified - Dual Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 2
395-014-520-678 EDAC Inc. 395-014-520-678 12.7640
RFQ
 ECAD 3193 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole Card Guides 395-014 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-014-520-678 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 14 Female Non Specified - Single Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
895-046-500-407 EDAC Inc. 895-046-500-407 158.8220
RFQ
 ECAD 6484 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-046 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-046-500-407 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 46 Female Non Specified - Single Edge 46 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 1
833-029-542-101 EDAC Inc. 833-029-542-101 47.1396
RFQ
 ECAD 7568 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-029 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-833-029-542-101 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 29 Female Non Specified - Single Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Diallyl Phthalate (DAP) 1
845-006-520-458 EDAC Inc. 845-006-520-458 -
RFQ
 ECAD 8780 0.00000000 EDAC Inc. 845 Box Obsolete 845-006 - ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-845-006-520-458 EAR99 8536.69.4040 25
395-106-524-507 EDAC Inc. 395-106-524-507 16.5164
RFQ
 ECAD 5289 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-106 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-106-524-507 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 106 Female Non Specified - Dual Edge 53 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 2
387-006-541-104 EDAC Inc. 387-006-541-104 4.6216
RFQ
 ECAD 8821 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole - 387-006 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-387-006-541-104 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 6 Female Non Specified - Single Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 1
395-128-525-207 EDAC Inc. 395-128-525-207 17.2588
RFQ
 ECAD 3903 0.00000000 EDAC Inc. 395 Bulk Active -40°C ~ 105°C Through Hole - 395-128 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-395-128-525-207 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 128 Female Non Specified - Dual Edge 64 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, M3 Polyester Thermoplastic 2
345-130-541-503 EDAC Inc. 345-130-541-503 17.5444
RFQ
 ECAD 9839 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-130 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-345-130-541-503 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 130 Female Non Specified - Dual Edge 65 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
395-021-540-112 EDAC Inc. 395-021-540-112 12.4080
RFQ
 ECAD 6446 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-021 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-021-540-112 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 21 Female Non Specified - Single Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
746-052-525-506 EDAC Inc. 746-052-525-506 13.6436
RFQ
 ECAD 2309 0.00000000 EDAC Inc. 746 Bulk Active -40°C ~ 105°C Through Hole - 746-052 Black Press-Fit download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-746-052-525-506 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 30.0µin (0.76µm) Copper Alloy Cantilever 52 Female Non Specified - Single Edge 52 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1
345-028-558-558 EDAC Inc. 345-028-558-558 14.0372
RFQ
 ECAD 5992 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole, Right Angle Card Guides 345-028 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-028-558-558 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 28 Female Non Specified - Dual Edge 14 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
895-020-559-402 EDAC Inc. 895-020-559-402 70.8752
RFQ
 ECAD 1252 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 895-020 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-020-559-402 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 20 Female Non Specified - Single Edge 20 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 1
307-033-425-168 EDAC Inc. 307-033-425-168 20.2788
RFQ
 ECAD 1583 0.00000000 EDAC Inc. 307 Bulk Active -40°C ~ 105°C Through Hole Card Guides 307-033 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-307-033-425-168 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Tin - Copper Alloy Semi Bellows 33 Female Non Specified - Single Edge 33 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
342-022-500-202 EDAC Inc. 342-022-500-202 14.2932
RFQ
 ECAD 8088 0.00000000 EDAC Inc. 342 Box Active -40°C ~ 105°C Through Hole - 342-022 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-342-022-500-202 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Dual Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
307-040-401-102 EDAC Inc. 307-040-401-102 40.1504
RFQ
 ECAD 4567 0.00000000 EDAC Inc. 307 Bulk Active -40°C ~ 105°C Through Hole - 307-040 Green Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-307-040-401-102 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 80 Female Non Specified - Dual Edge 40 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
395-116-542-288 EDAC Inc. 395-116-542-288 16.8064
RFQ
 ECAD 8399 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole Card Guides 395-116 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-116-542-288 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 116 Female Non Specified - Dual Edge 58 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
333-056-524-812 EDAC Inc. 333-056-524-812 10.4344
RFQ
 ECAD 8669 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-056 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-056-524-812 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 56 Female Non Specified - Dual Edge 28 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2

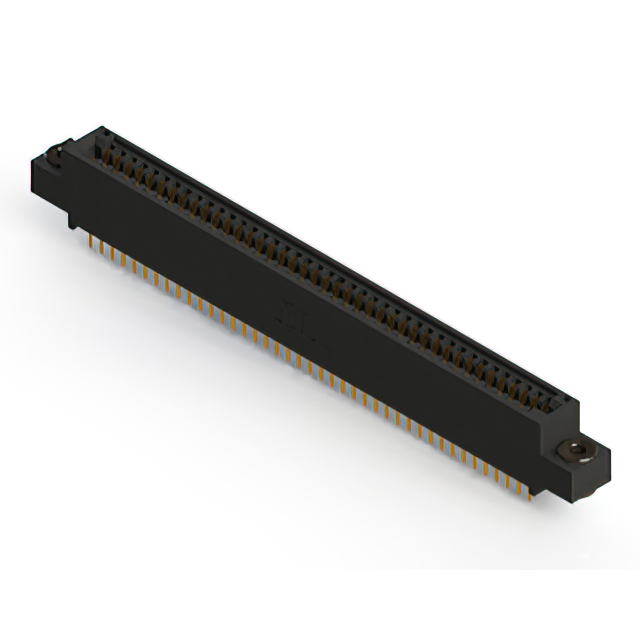

895-082-525-503 EDAC Inc. 895-082-525-503 90.4836
RFQ
 ECAD 8399 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-082 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-082-525-503 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 82 Female Non Specified - Dual Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 2
395-072-521-278 EDAC Inc. 395-072-521-278 14.5288
RFQ
 ECAD 1466 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole Card Guides 395-072 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-072-521-278 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 72 Female Non Specified - Dual Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2

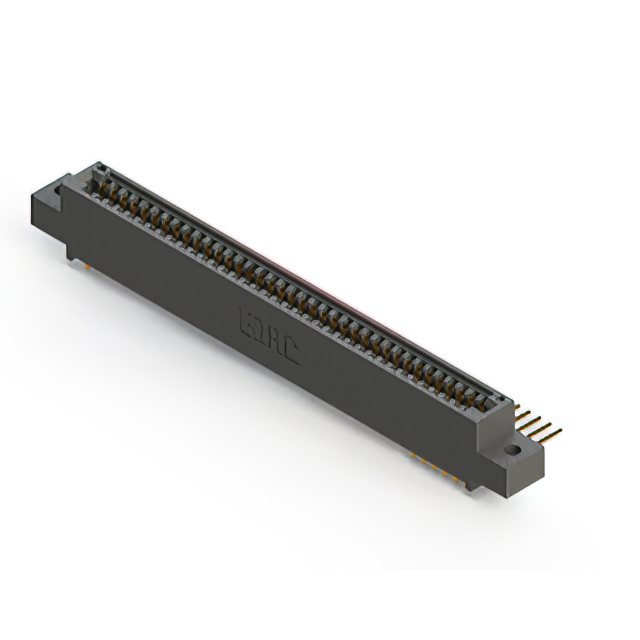

895-074-559-502 EDAC Inc. 895-074-559-502 85.7588
RFQ
 ECAD 6504 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 895-074 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-074-559-502 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 74 Female Non Specified - Dual Edge 37 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 2
346-054-526-804 EDAC Inc. 346-054-526-804 10.2020
RFQ
 ECAD 3346 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-054 Green Solder download ROHS3 Compliant REACH Unaffected 151-346-054-526-804 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 54 Female Non Specified - Dual Edge 27 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
846-030-520-101 EDAC Inc. 846-030-520-101 45.1236
RFQ
 ECAD 8032 0.00000000 EDAC Inc. 846 Box Active -40°C ~ 125°C Through Hole - 846-030 Green Solder download ROHS3 Compliant REACH Unaffected 151-846-030-520-101 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 30 Female Non Specified - Single Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Diallyl Phthalate (DAP) 1
346-039-520-602 EDAC Inc. 346-039-520-602 8.7248
RFQ
 ECAD 6291 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-039 Green Solder download ROHS3 Compliant REACH Unaffected 151-346-039-520-602 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 39 Female Non Specified - Single Edge 39 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
887-035-542-101 EDAC Inc. 887-035-542-101 51.8128
RFQ
 ECAD 5868 0.00000000 EDAC Inc. 887 Bulk Active -40°C ~ 125°C Through Hole - 887-035 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-887-035-542-101 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 35 Female Non Specified - Single Edge 35 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyphenylene Sulfide (PPS) 1
346-076-541-212 EDAC Inc. 346-076-541-212 13.3508
RFQ
 ECAD 5617 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-076 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-346-076-541-212 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 76 Female Non Specified - Dual Edge 38 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2
807-078-442-201 EDAC Inc. 807-078-442-201 112.3448
RFQ
 ECAD 4724 0.00000000 EDAC Inc. 807 Bulk Active -40°C ~ 125°C Through Hole - 807-078 Green Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-807-078-442-201 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Tin - Copper Alloy Semi Bellows 78 Female Non Specified - Dual Edge 39 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Diallyl Phthalate (DAP) 2
333-041-500-112 EDAC Inc. 333-041-500-112 28.0092
RFQ
 ECAD 7927 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-041 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-041-500-112 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 41 Female Non Specified - Single Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 1
892-018-544-107 EDAC Inc. 892-018-544-107 88.7488
RFQ
 ECAD 5807 0.00000000 EDAC Inc. 892 Bulk Active -40°C ~ 125°C Through Hole - 892-018 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-892-018-544-107 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 18 Female Non Specified - Single Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Polyphenylene Sulfide (PPS) 1
