D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
630-M15-340-BT6 | 8.5759 |  |
5311 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets, Shielded | 630-M15 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M15-340-BT6 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 2 (DA, A) | 0.370" (9.40mm) | ||
 |
B57-036-567I723 | - | |
1529 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-036-567I723 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
630-M37-640-LN6 | 20.4820 | |
3087 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets, Shielded | 630-M37 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M37-640-LN6 | EAR99 | 8536.69.4040 | 500 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 37 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 4 (DC, C) | 0.370" (9.40mm) | ||
 |
621-025-360-035 | 4.5360 | |
9671 | 0.00000000 | EDAC Inc. | 621 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 621-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-621-025-360-035 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | 0.318" (8.08mm) | ||
 |
637-062-630-262 | 9.0506 | |
7325 | 0.00000000 | EDAC Inc. | 637 | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 637-062 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-637-062-630-262 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 62 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, High Density | - | - | 4 (DC, C) High Density | - | |
 |
628-025-620-243 | 3.9733 | |
1361 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Shielded | 628-025 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-025-620-243 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 3 (DB, B) | - | |
 |
B57-124-265I702 | - | |
7953 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-124-265I702 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
630-47W1640-4N2 | 38.7542 | |
5795 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 630-47W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-47W1640-4N2 | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 47 (46 + 1 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 47W1 | 0.370" (9.40mm) | |
 |
630-11W1650-3N3 | 12.5280 | |
6138 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-11W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-11W1650-3N3 | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 11 (10 + 1 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 11C1, 11W1 | 0.370" (9.40mm) | |
 |
629-2W2-640-2T6 | 8.4557 | |
2209 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents | 629-2W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-2W2-640-2T6 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 1 | Gold | 30.0µin (0.76µm) | 20A | Copper Alloy | UL94 V-0 | Power | 2 (Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | 0.520" (13.20mm) | |
 |
627-M50-220-WN2 | 9.6747 | |
8526 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-M50 | White | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M50-220-WN2 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 50 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 5 (DD, D) | - | ||
 |
628-025-221-557 | - | |
4389 | 0.00000000 | EDAC Inc. | 628 | Tray | Obsolete | -55°C ~ 85°C | Through Hole | - | 628-025 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-025-221-557 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | - | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyester Thermoplastic | - | D-Sub | - | - | 3 (DB, B) | - | |
 |
629-13W3640-5N3 | 20.5993 | |
4930 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-13W3640-5N3 | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 13 (10 + 3 Coax) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 13C3, 13W3 | 0.370" (9.40mm) | |
 |

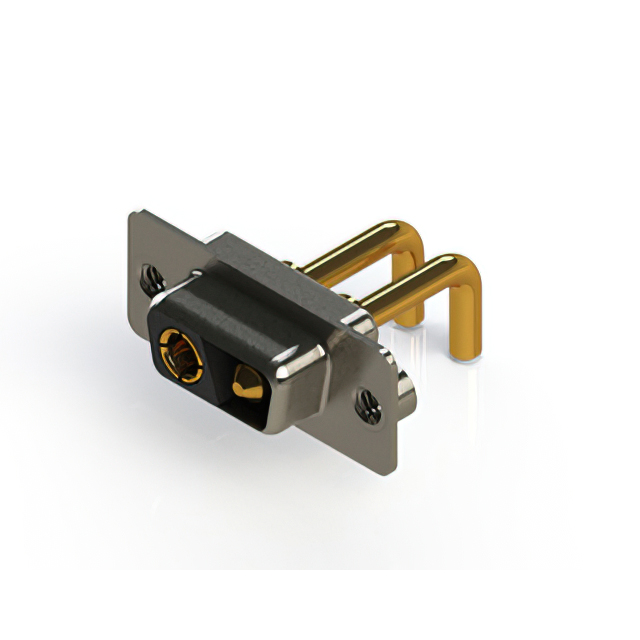

630-2WK2250-2NA | 6.9542 | |
1320 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 630-2WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-2WK2250-2NA | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets and Male Pins | 1 | Gold | Flash | 20A | Copper Alloy | UL94 V-0 | Power | 2 (Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | 0.520" (13.20mm) | |
 |
622-015-360-053 | 3.7484 | |
2593 | 0.00000000 | EDAC Inc. | 622 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Mounting Brackets, Shielded | 622-015 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-015-360-053 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | 0.318" (8.08mm) | ||
 |
627-015-221-257 | 2.3432 | |
9374 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-015 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-015-221-257 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 2 (DA, A) | - | |
 |
629-47W1240-7N5 | 21.6453 | |
1217 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-47W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-47W1240-7N5 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 47 (46 + 1 Coax) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 47W1 | 0.370" (9.40mm) | |
 |
661-025-364-004 | 10.1475 | |
9439 | 0.00000000 | EDAC Inc. | 661 | Tray | Active | -55°C ~ 85°C | Panel Mount, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 661-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-661-025-364-004 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2, 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 25, 25 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 3 (DB, B); 3 (DB, B) | 0.318" (8.08mm) | ||
 |
B57-036-660I723 | - | |
5837 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-036-660I723 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
B57-014-660I503 | - | |
6752 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-014-660I503 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
|
628-015-620-546 | - | |
6851 | 0.00000000 | EDAC Inc. | 628 | Tray | Obsolete | -55°C ~ 85°C | Through Hole | Board Lock | 628-015 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-015-620-546 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | - | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyester Thermoplastic | - | D-Sub | - | - | 2 (DA, A) | - | |
 |
628-009-324-017 | 4.0352 | |
4491 | 0.00000000 | EDAC Inc. | 628 (Plastic) | Tray | Active | -55°C ~ 85°C | Through Hole | Board Lock, Shielded | 628-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-009-324-017 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass | UL94 V-0 | Signal and Power | 9 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | - | ||
 |
638-026-230-047 | 4.4540 | |
6104 | 0.00000000 | EDAC Inc. | 638 | Tube | Active | -55°C ~ 85°C | Through Hole | Board Lock, Shielded | 638-026 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | Receptacle, Female Sockets | 3 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 26 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 2 (DA, A) High Density | - | ||
 |
630-7W2-640-1TB | 10.8454 | |
2926 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-7W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-7W2-640-1TB | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 7 (5 + 2 Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 7W2 | 0.370" (9.40mm) | |
 |
638-078-332-068 | 10.0172 | |
3689 | 0.00000000 | EDAC Inc. | 638 | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Shielded | 638-078 | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-638-078-332-068 | EAR99 | 8536.69.4040 | 500 | Receptacle, Female Sockets | 4 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 78 | - | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 5 (DD, D) High Density | - | |
|
627-27W2224-3TC | 9.8212 | |
7205 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-27W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-27W2224-3TC | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 27 (25 + 2 Power) | 125V | Board Side (M3); Mating Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 27W2 | - | |
 |
630-13W6250-3NB | 16.8236 | |
5789 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-13W6250-3NB | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 13 (7 + 6 Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 13W6 | 0.370" (9.40mm) | |
 |
622-M50-660-WT5 | 28.8400 | |
5197 | 0.00000000 | EDAC Inc. | 622-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 622-M50 | White | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-M50-660-WT5 | EAR99 | 8536.69.4040 | 500 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 50 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 5 (DD, D) | 0.283" (7.20mm) | ||
|
627-21W1624-5TB | 20.8735 | |
4850 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-21W1624-5TB | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 21 (20 + 1 Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 21W1 | - | |
 |
628-17W2624-5TD | 20.4737 | |
1856 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-17W2624-5TD | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 17 (15 + 2 Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | - |
