D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
630-M50-340-LT3 | 21.0740 |  |
9999 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 630-M50 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M50-340-LT3 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 3 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 50 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 5 (DD, D) | 0.370" (9.40mm) | ||
 |
628-037-228-242 | 6.9986 | |
8466 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Shielded | 628-037 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-037-228-242 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal and Power | 37 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub | - | - | 4 (DC, C) | - | |
 |
628-21W4224-4TD | 10.2848 | |
1634 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-21W4224-4TD | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 21 (17 + 4 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 21WA4 | - | |
 |

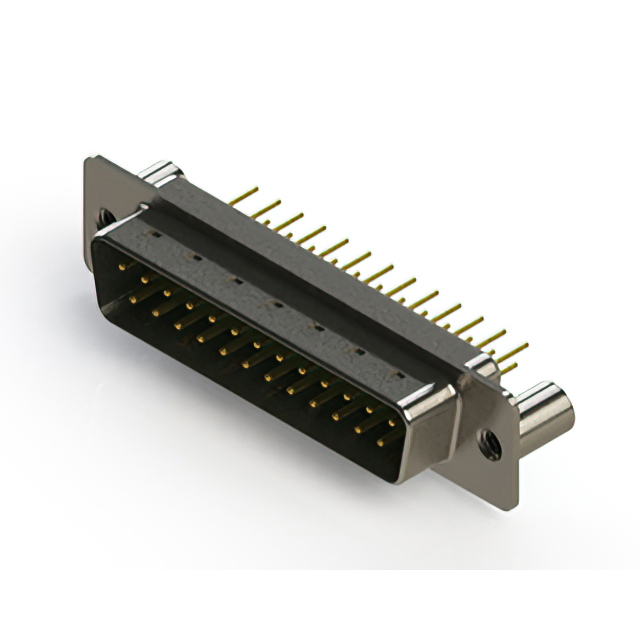

627-M25-220-GT3 | 5.1450 | |
5485 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-M25 | Green | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M25-220-GT3 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 25 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 3 (DB, B) | - | ||
 |
626-015-262-530 | 4.7628 | |
1327 | 0.00000000 | EDAC Inc. | 626 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 626-015 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-626-015-262-530 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | 0.584" (14.84mm) | ||
 |
622-025-668-053 | 7.0224 | |
3557 | 0.00000000 | EDAC Inc. | 622 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Filter, Mounting Brackets, Shielded | 622-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-025-668-053 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | 0.318" (8.08mm) | ||
 |
630-11W1240-7T2 | 4.5524 | |
7590 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 630-11W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-11W1240-7T2 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 11 (10 + 1 Coax) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 11C1, 11W1 | 0.370" (9.40mm) | |
 |
630-M50-340-LN1 | 19.8513 | |
1689 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Shielded | 630-M50 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M50-340-LN1 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 3 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 50 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 5 (DD, D) | 0.370" (9.40mm) | ||
 |
633-M26-663-BT2 | 12.7883 | |
2036 | 0.00000000 | EDAC Inc. | 633-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Shielded | 633-M26 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-633-M26-663-BT2 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 26 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub, High Density | - | Machined | 2 (DA, A) High Density | 0.350" (8.89mm) | ||
 |

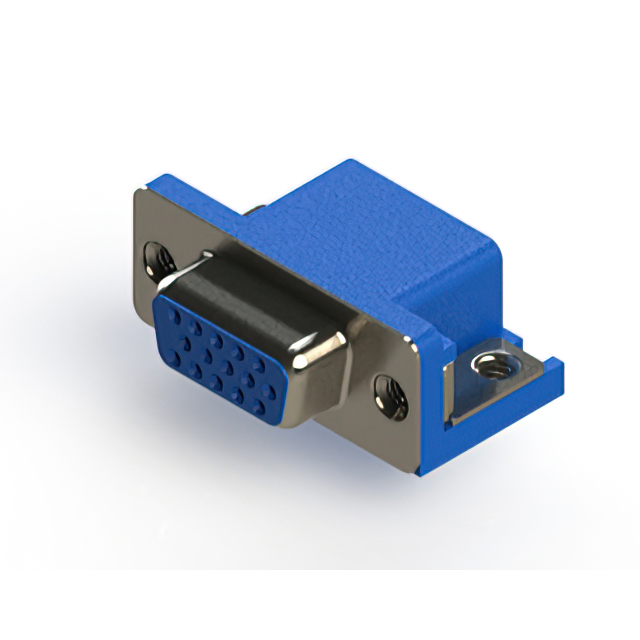

634-015-374-555 | 4.5644 | |
5709 | 0.00000000 | EDAC Inc. | 634 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 634-015 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-634-015-374-555 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 3 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 1 (DE, E) High Density | 0.350" (8.89mm) | ||
 |
B57-124-661IF02 | - | |
4093 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-124-661IF02 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
B57-124-260IF22 | - | |
1352 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-124-260IF22 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
B57-014-222I323 | - | |
5634 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-014-222I323 | EAR99 | 8536.69.8000 | 1 | |||||||||||||||||||||||||||
 |
628-2WK2624-7ND | 11.9675 | |
7857 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-2WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-2WK2624-7ND | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets and Male Pins | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 2 (Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | - | |
 |
630-24W7640-7N3 | 40.0706 | |
5933 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-24W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-24W7640-7N3 | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 24 (17 + 7 Coax) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 24W7 | 0.370" (9.40mm) | |
 |
628-17W2624-1ND | 18.7749 | |
9400 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-17W2624-1ND | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | - | |
 |
629-36W4240-4ND | 15.2454 | |
9337 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-36W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-36W4240-4ND | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 36 (32 + 4 Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 36W4 | 0.370" (9.40mm) | |
 |
664-037-264-037 | 12.9544 | |
6488 | 0.00000000 | EDAC Inc. | 664 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 664-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-664-037-264-037 | EAR99 | 8536.69.4040 | 25 | Receptacle, Female Socket ; Plug, Male Pins | 2, 2 | Gold | Flash | 3A per Contact | Brass, Phosphor Bronze | UL94 V-0 | Signal | 37, 37 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 4 (DC, C); 4 (DC, C) | 0.318" (8.08mm) | ||
 |
B57-136-261I822 | - | |
9399 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-136-261I822 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
B57-150-667I422 | - | |
2863 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-150-667I422 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
629-43W2650-1NB | 35.7049 | |
7258 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-43W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-43W2650-1NB | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 43 (41 + 2 Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 43W2 | 0.370" (9.40mm) | |
 |
637-M62-332-BT6 | 20.3116 | |
5295 | 0.00000000 | EDAC Inc. | 637-M | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Board Lock, Grounding Indents, Shielded | 637-M62 | Black | Solder Cup | - | download | ROHS3 Compliant | REACH Unaffected | 151-637-M62-332-BT6 | EAR99 | 8536.69.4040 | 300 | Plug, Male Pins | 3 | Gold | 15.0µin (0.38µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 62 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub, High Density | - | Machined | 4 (DC, C) High Density | - | ||
 |
633-026-663-533 | 9.8280 | |
9815 | 0.00000000 | EDAC Inc. | 633 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 633-026 | - | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-633-026-663-533 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 26 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 2 (DA, A) High Density | 0.350" (8.89mm) | ||
 |
B57-014-660I723 | - | |
2564 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-014-660I723 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
630-M25-240-LN1 | 5.3666 | |
5364 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Shielded | 630-M25 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M25-240-LN1 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 25 | - | Housing/Shell (Unthreaded) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 3 (DB, B) | 0.370" (9.40mm) | ||
 |
630-3WK3640-2T4 | 10.7403 | |
8149 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets | 630-3WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-3WK3640-2T4 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets and Male Pins | 1 | Gold | 30.0µin (0.76µm) | 20A | Copper Alloy | UL94 V-0 | Power | 3 (Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3WK3 | 0.520" (13.20mm) | |
 |
628-015-321-052 | 2.6215 | |
8934 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Shielded | 628-015 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-015-321-052 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | - | ||
 |
621-009-268-040 | 2.6900 | |
2577 | 0.00000000 | EDAC Inc. | 621 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Filter, Grounding Indents, Mounting Brackets, Shielded | 621-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-621-009-268-040 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | 0.318" (8.08mm) | ||
 |
627-W15-221-012 | 11.9230 | |
2447 | 0.00000000 | EDAC Inc. | 627-W | Tray | Active | -25°C ~ 85°C | Panel Mount, Through Hole | Grounding Indents | 627-W15 | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-W15-221-012 | EAR99 | 8536.69.4040 | 126 | Plug, Male Pins | 2 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 15 | - | Board Side (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | - | |
 |
663-037-364-032 | 14.1198 | |
2670 | 0.00000000 | EDAC Inc. | 663 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 663-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-663-037-364-032 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins; Receptacle, Female Sockets | 2, 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass, Phosphor Bronze | UL94 V-0 | Signal | 37, 37 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 4 (DC, C); 4 (DC, C) | 0.318" (8.08mm) |
