D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
630-M15-640-GT6 | 10.0485 |  |
9889 | 0.00000000 | EDAC Inc. | 630-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets, Shielded | 630-M15 | Green | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-630-M15-640-GT6 | EAR99 | 8536.69.4040 | 500 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 2 (DA, A) | 0.370" (9.40mm) | ||
 |
630-24W7640-5N6 | 39.9498 | |
3843 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock | 630-24W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-24W7640-5N6 | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 24 (17 + 7 Coax) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 24W7 | 0.370" (9.40mm) | |
 |
630-24W7250-2NE | 15.8492 | |
1516 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets | 630-24W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-24W7250-2NE | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 24 (17 + 7 Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 24W7 | 0.370" (9.40mm) | |
 |

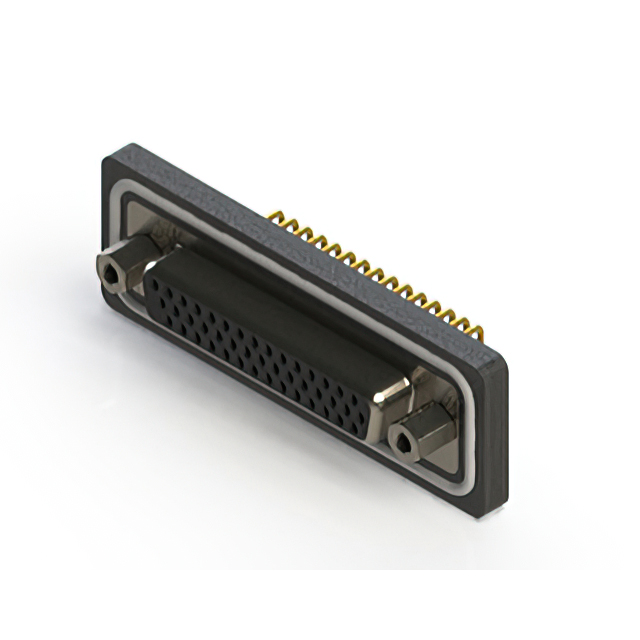

634-W44-262-012 | 20.0818 | |
8988 | 0.00000000 | EDAC Inc. | 634-W | Tray | Active | -25°C ~ 85°C | Through Hole, Right Angle | - | 634-W44 | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | REACH Unaffected | 151-634-W44-262-012 | EAR99 | 8536.69.4040 | 120 | Receptacle, Female Sockets | 3 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 44 | - | Mating Side, Female Screwlock (4-40) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, High Density | - | - | 3 (DB, B) High Density | - | ||
 |
629-11W1640-5T1 | 8.9547 | |
3597 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Shielded | 629-11W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-11W1640-5T1 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 11 (10 + 1 Coax) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 2 (DA, A) - 11C1, 11W1 | 0.370" (9.40mm) | |
 |
637-062-230-269 | 7.3690 | |
1955 | 0.00000000 | EDAC Inc. | 637 | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 637-062 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-637-062-230-269 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 3 | Gold | Flash | 3A per Contact | Brass | UL94 V-0 | Signal | 62 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, High Density | - | - | 4 (DC, C) High Density | - | |
 |
638-M26-232-BN6 | 9.5571 | |
5233 | 0.00000000 | EDAC Inc. | 638-M | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Board Lock, Shielded | 638-M26 | Black | Solder Cup | - | download | ROHS3 Compliant | REACH Unaffected | 151-638-M26-232-BN6 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 26 | - | Mating Side (4-40) | Polyamide (PA9T), Nylon 9T | Steel, Nickel Plated | D-Sub, High Density | - | Machined | 2 (DA, A) High Density | - | ||
 |
B57-114-222I422 | - | |
6890 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-114-222I422 | EAR99 | 8536.69.8000 | 1 | |||||||||||||||||||||||||||
 |
634-026-663-015 | 7.7804 | |
5826 | 0.00000000 | EDAC Inc. | 634 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Mounting Brackets, Shielded | 634-026 | - | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-634-026-663-015 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 26 | - | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 2 (DA, A) High Density | 0.350" (8.89mm) | ||
 |
628-M50-221-WN5 | 10.7636 | |
8447 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-M50 | White | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-M50-221-WN5 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 50 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 5 (DD, D) | - | ||
 |

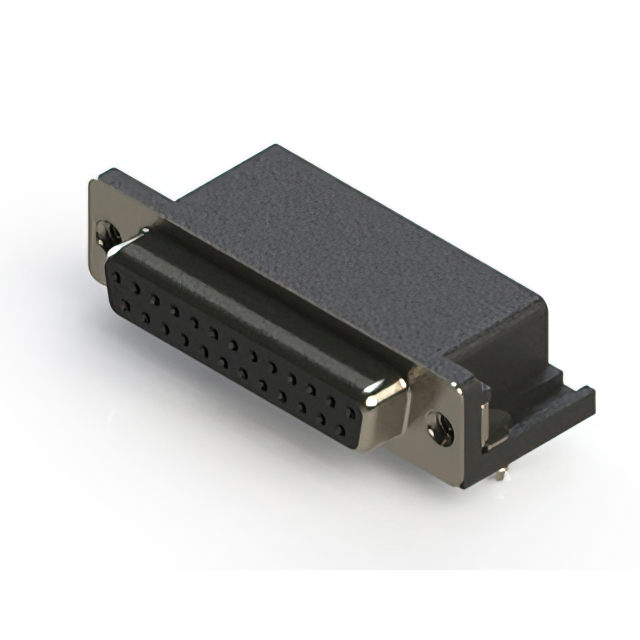

626-025-362-541 | 7.2418 | |
5187 | 0.00000000 | EDAC Inc. | 626 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 626-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-626-025-362-541 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | 0.584" (14.84mm) | ||
 |
628-5W5-622-2T1 | 18.4381 | |
3191 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Shielded | 628-5W5 | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-5W5-622-2T1 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 1 | Gold | 30.0µin (0.76µm) | 20A | Copper Alloy | UL94 V-0 | Signal and Power | 5 (Power) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 5W5 | - | |
 |
633-026-663-542 | 9.9152 | |
5972 | 0.00000000 | EDAC Inc. | 633 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 633-026 | - | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-633-026-663-542 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 26 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 2 (DA, A) High Density | 0.350" (8.89mm) | ||
 |
627-M37-623-WT1 | 38.0518 | |
4619 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-M37 | White | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-M37-623-WT1 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 37 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 4 (DC, C) | - | |
 |
628-015-622-548 | - | |
2488 | 0.00000000 | EDAC Inc. | 628 | Tray | Obsolete | -55°C ~ 85°C | Panel Mount | - | 628-015 | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-015-622-548 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | - | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side (4-40) | Polyester Thermoplastic | - | D-Sub | - | - | 2 (DA, A) | - | |
 |
628-M50-622-LN2 | 34.2020 | |
4363 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Shielded | 628-M50 | Blue | Solder Cup | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-M50-622-LN2 | EAR99 | 8536.69.4040 | 500 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 50 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 5 (DD, D) | - | ||
 |
B57-136-260I302 | - | |
2700 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-136-260I302 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
629-3WK3650-4NA | 12.7118 | |
7890 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents | 629-3WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-3WK3650-4NA | EAR99 | 8536.69.4040 | 250 | Plug, Female Sockets and Male Pins | 1 | Gold | 30.0µin (0.76µm) | 40A | Copper Alloy | UL94 V-0 | Power | 3 (Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 3WK3 | 0.520" (13.20mm) | |
 |
B57-050-561I403 | - | |
4755 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-050-561I403 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
628-M25-223-LT3 | 13.6198 | |
1566 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-M25 | Blue | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-M25-223-LT3 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 25 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 3 (DB, B) | - | |
 |
622-015-260-531 | 2.8770 | |
5078 | 0.00000000 | EDAC Inc. | 622 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 622-015 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-015-260-531 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | 0.318" (8.08mm) | ||
 |
629-5W1-240-4T2 | 3.5146 | |
5542 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 629-5W1 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-5W1-240-4T2 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 2 | Gold | Flash | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 5 (4 + 1 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 5W1 | 0.370" (9.40mm) | |
 |
628-25W3224-1TD | 11.4180 | |
1911 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-25W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-25W3224-1TD | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 25 (22 + 3 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 25W3 | - | |
 |

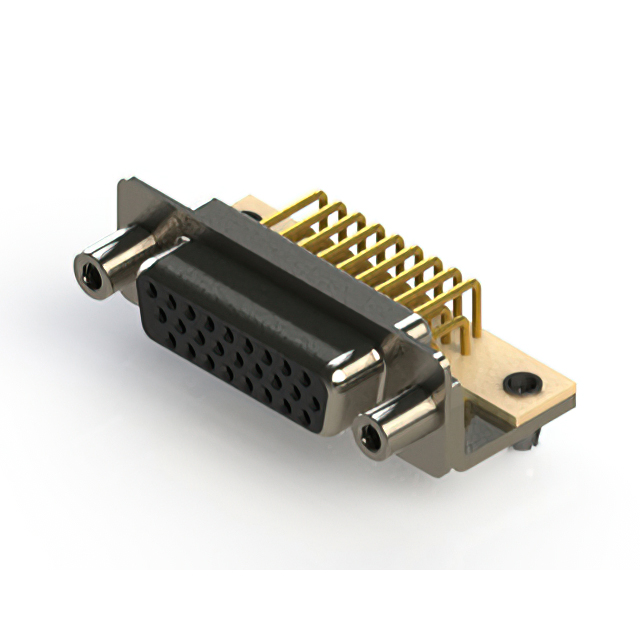

634-M26-263-BN5 | 9.9603 | |
4568 | 0.00000000 | EDAC Inc. | 634-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 634-M26 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-634-M26-263-BN5 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 26 | - | Mating Side (4-40) | Polyamide (PA9T), Nylon 9T | Steel, Nickel Plated | D-Sub, High Density | - | Machined | 2 (DA, A) High Density | 0.350" (8.89mm) | ||
 |
621-M15-660-LN2 | 7.7800 | |
9404 | 0.00000000 | EDAC Inc. | 621-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Shielded | 621-M15 | Blue | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-621-M15-660-LN2 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 2 (DA, A) | 0.283" (7.20mm) | ||
 |

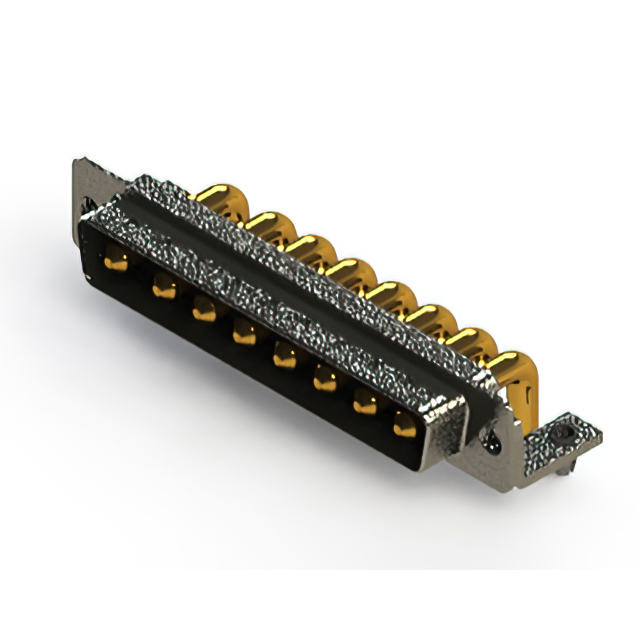

629-8W8-240-4TB | 10.0970 | |
1150 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-8W8 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-8W8-240-4TB | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 1 | Gold | Flash | 40A | Copper Alloy | UL94 V-0 | Power | 8 (Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 8W8 | 0.520" (13.20mm) | |
 |
630-21W1640-4NA | 20.2541 | |
5494 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 630-21W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-21W1640-4NA | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 21 (20 + 1 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 21W1 | 0.370" (9.40mm) | |
 |
633-044-263-512 | 6.4680 | |
4428 | 0.00000000 | EDAC Inc. | 633 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 633-044 | - | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-633-044-263-512 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 3 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 44 | - | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 3 (DB, B) High Density | 0.350" (8.89mm) | ||
 |
630W13W3240-3NB | 17.0321 | |
8163 | 0.00000000 | EDAC Inc. | 630-WC | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 630W13 | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630W13W3240-3NB | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 13 (10 + 3 Power) | 125V | Housing/Shell (M3) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 13C3, 13W3 | - | |
 |
622-M50-260-BN4 | 13.2804 | |
3756 | 0.00000000 | EDAC Inc. | 622-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Mounting Brackets, Shielded | 622-M50 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-M50-260-BN4 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 50 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 5 (DD, D) | 0.283" (7.20mm) |
